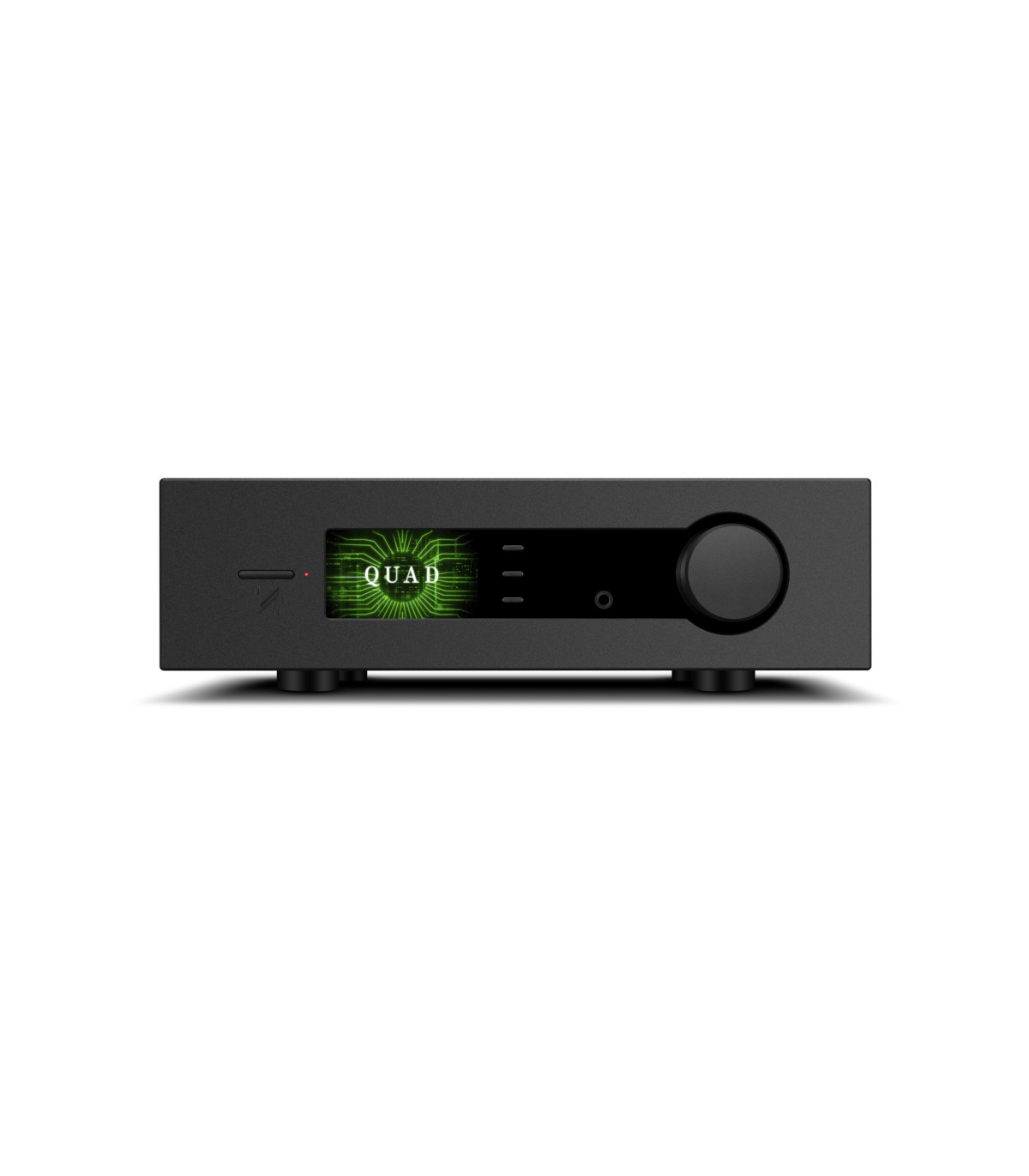

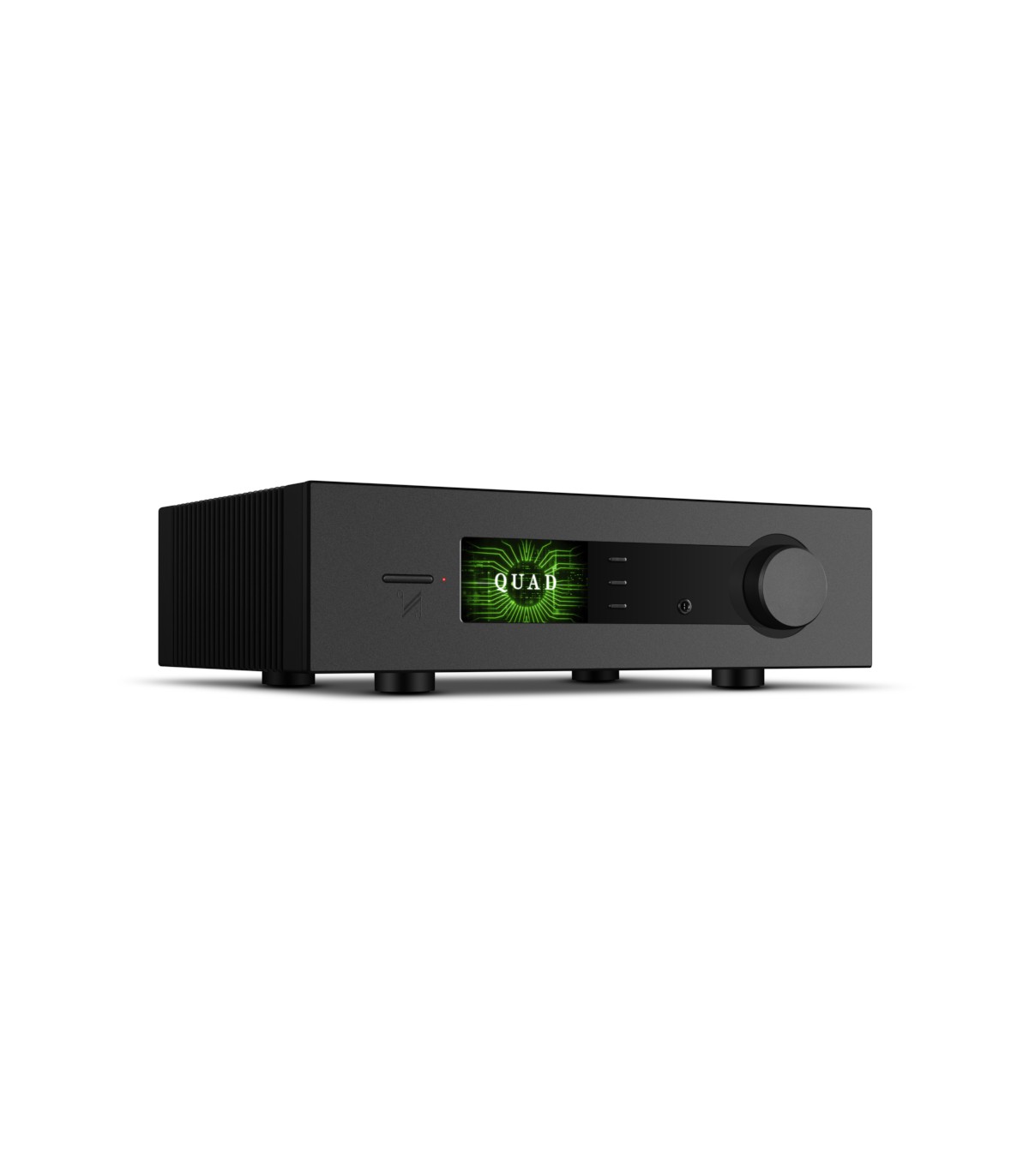

QUAD PLATINA INTEGRATED
Bold in design and substantial in form, the QUAD PLATINA INTEGRATED delivers reference-grade sound, exceptional power, and peerless finesse.
Typically QUAD, yet offering a new timeless form, reimagined with crisp, modern intent, the PLATINA series retains the soul of its heritage while embracing today’s clean geometry, refined materials, and purposeful simplicity.

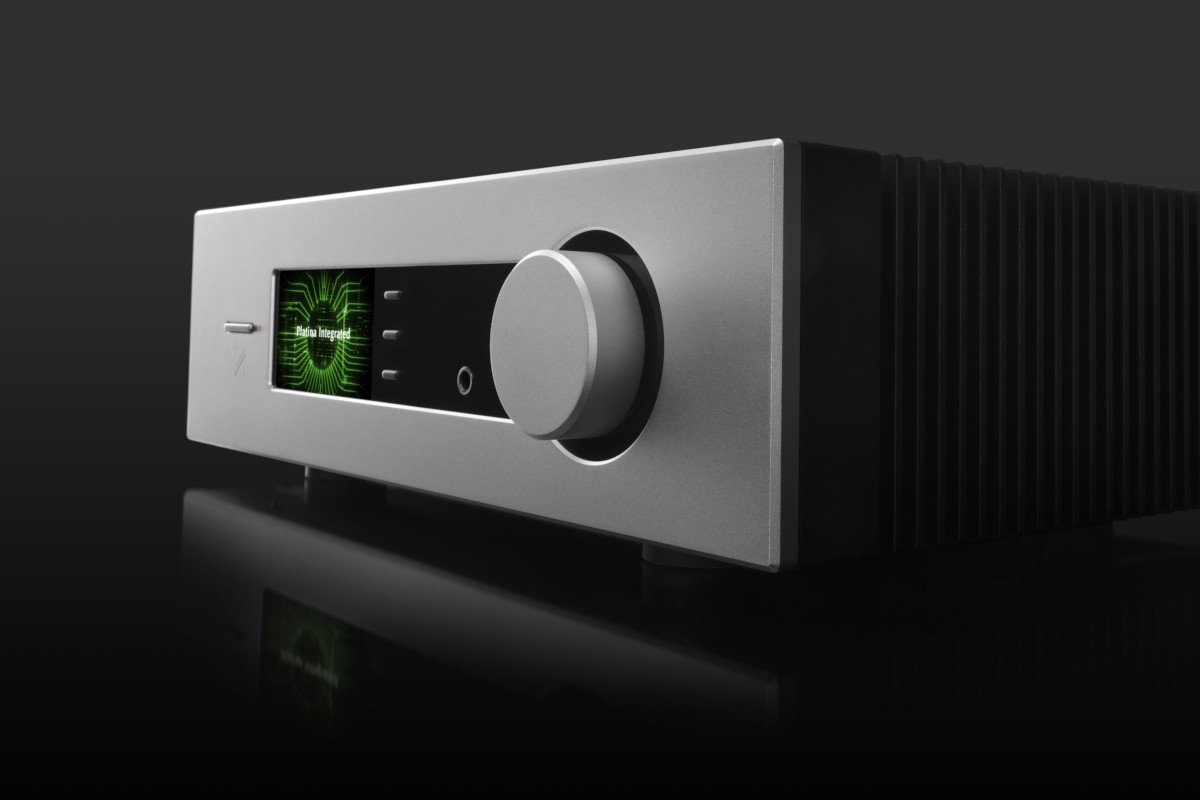

An exercise in restraint and refinement, tactile machined aluminium knobs and subtle buttons flank a crisp TFT display, providing a tactile and visual focal point.

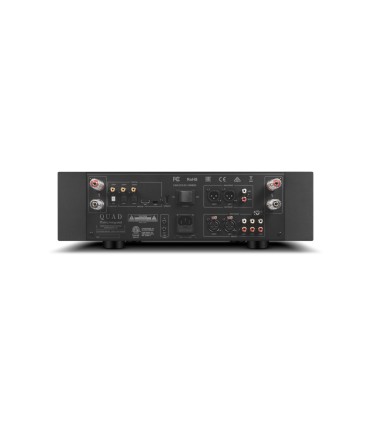

The disciplined rear panel layout, with gold-plated connectors, speaks to both form and function, ensuring a premium user experience at every touchpoint.
The result is strikingly contemporary.
$3,923.61
- Make and model
- Quad Platina Integrated
- Frequency response
- 20Hz-20kHz (+/-0.1dB)
- Input impedance
- 50K (Line) 50K // 100pF (Phono MM) 360R // 200pF (Phono MC)
- Output impedance
- 120 ohms
- Dimensions (WHD)
- 445x134.5x348mm
- Weight
- 17kg
- Input sensitivity
- 695mV (Line / XLR), 3.2mV (Phono MM), 460uV (Phono MC)
- Signal to noise ratio
- More than 110dB (A-Weighted)
- Inputs
- 2 x Analogue (RCA), 1 x XLR, 1 x Phono (MM / MC) 2 x SPDIF (Coaxial), 2 x SPDIF (Optical) 1 x PC USB(TYPE C) 1 x HDMI ARC 1 x 12V Trigger
- Outputs
- 1 x RCA (pair), 1 x XLR (pair) , 1 x Stereo Speaker binding post (pair), 1 x Optical, 1 x Coaxial, 1 x 12V Trigger
