Streaming stereo amplifier for passive speakers – plus TV audio via HDMI ARC

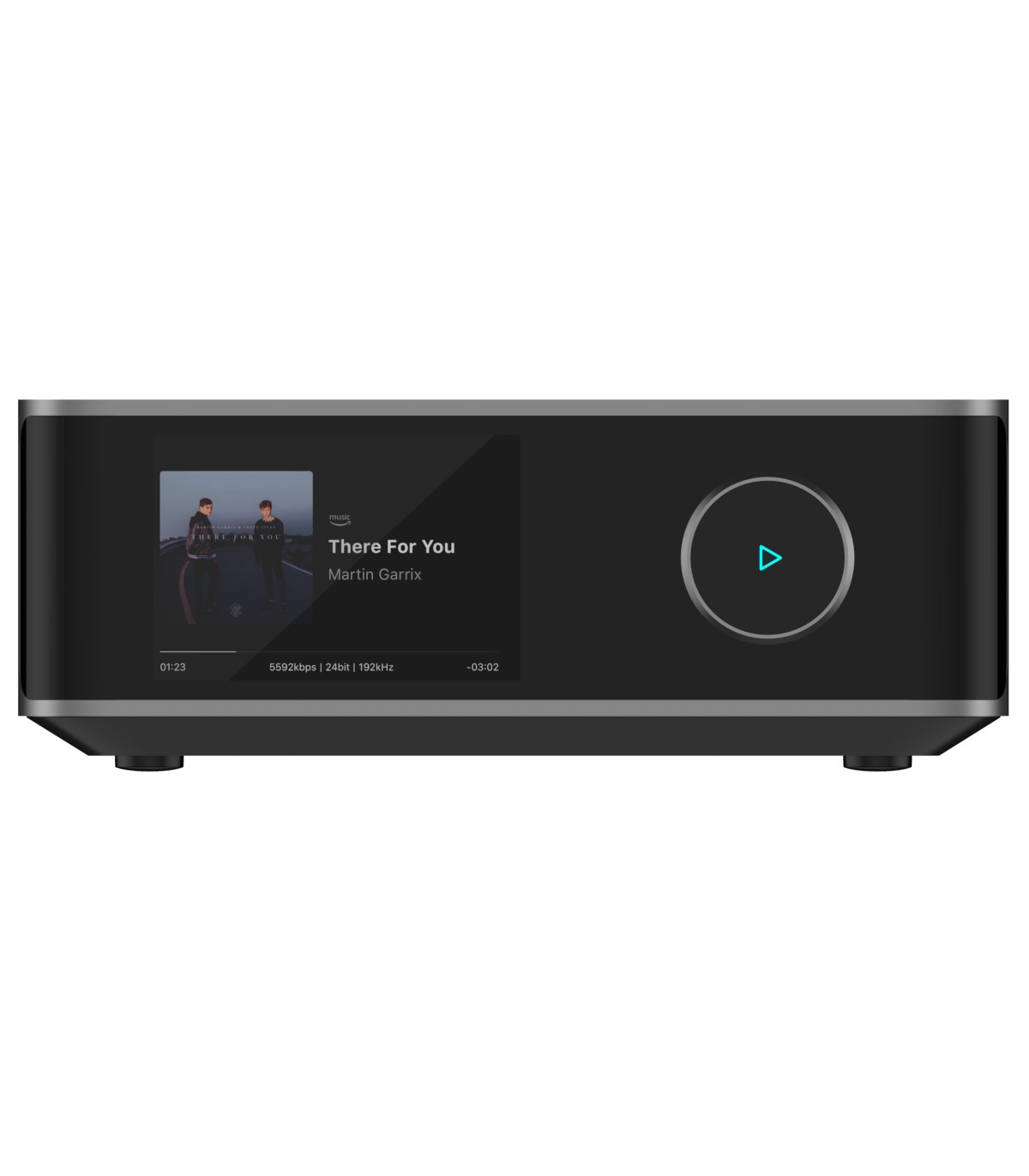

WiiM Amp Ultra is a streaming stereo amplifier that turns passive speakers into a modern, app-controlled system. It combines powerful amplification, Hi-Res playback and flexible control via the WiiM Home app, your favorite streaming apps, and the included WiiM Voice Remote 2. A 3.5” front touchscreen makes everyday control easy even without your phone.
Key features
Power: 2 x 100 W / 8 Ω or 2 x 200 W / 4 Ω (Class D with PFFB).
Hi-Res / bit-perfect playback: up to 24-bit / 192 kHz.
DAC: ESS ES9039Q2M.
Streaming & control: Spotify Connect, TIDAL Connect, Qobuz Connect, Google Cast, Alexa Cast, DLNA, Roon Ready.
EQ & room correction: per-source EQ, 10-band graphic + parametric EQ, presets, and RoomFit™ room correction.
Multiroom: grouping with WiiM, Google Cast and Alexa systems.
Note: no AirPlay 2 support. HDMI ARC and Optical In support PCM and Dolby Digital 5.1 (no DTS).

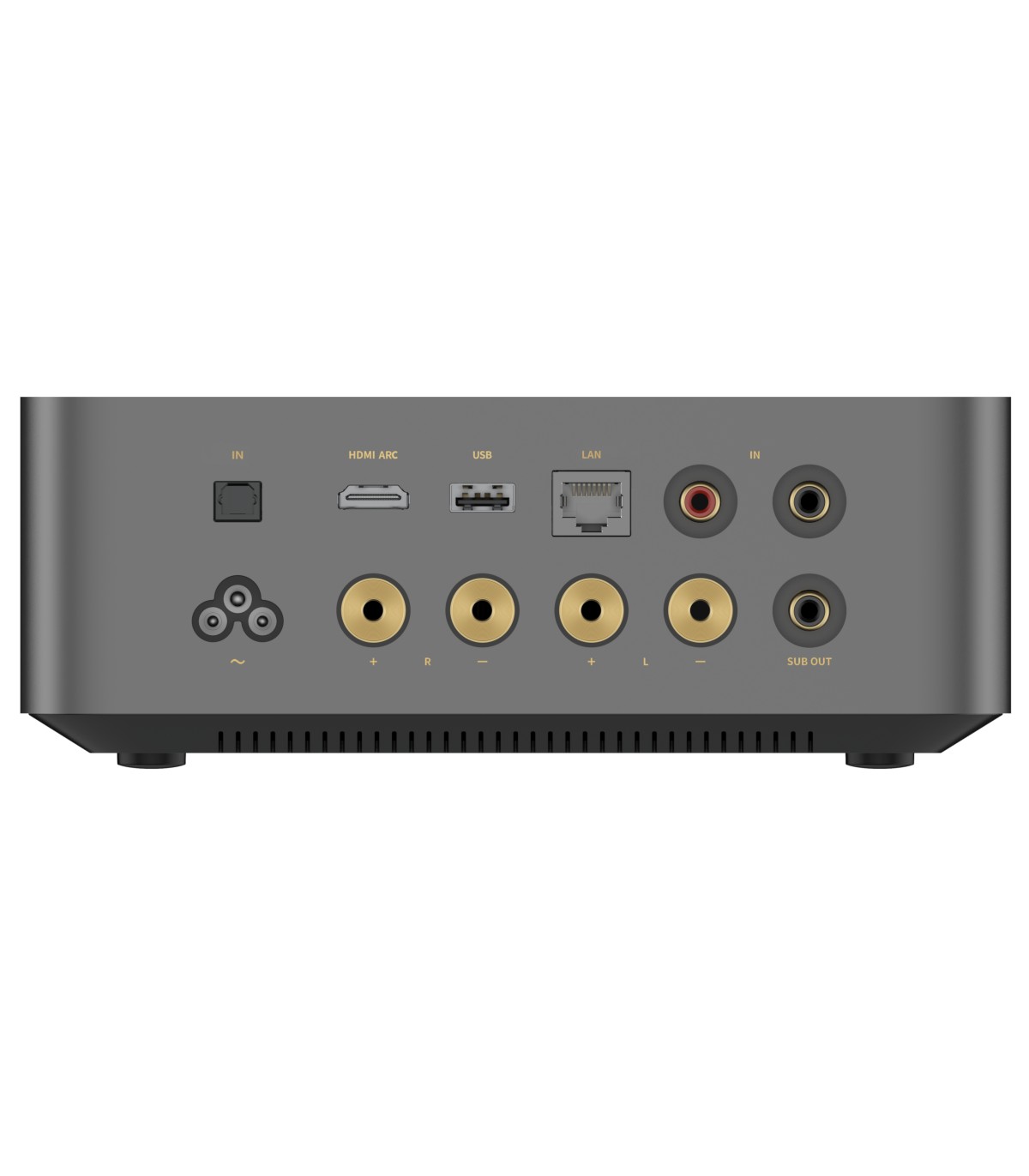

Connections
Inputs: HDMI ARC, Optical (Toslink), RCA line-in, Wi-Fi, Ethernet, Bluetooth.
Outputs: speaker terminals (banana / bare wire), Sub Out (RCA), USB Audio Out (can also work as a preamp into a USB DAC), Bluetooth output.
Also: 12V Trigger In.
Dimensions & weight
200 x 76 x 211 mm, 2.45 kg.
Colour
Space grey
What’s in the box
WiiM Amp Ultra, WiiM Voice Remote 2, quick start guide, power cable, HDMI cable, RCA cable, optical cable, 4x speaker banana plugs.
